Handmade Hickory Eku

Christopher Adamchek

Purple Belt
Joined
Oct 1, 2018
Messages
355
Reaction score
167
Location
CT

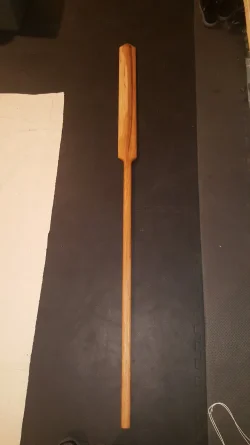

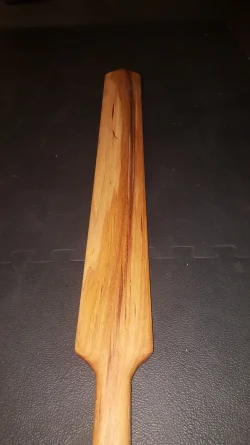

Hand made my own hickory karate eku (Okinawan [fighting] oar)
‍♂️

With a tung oil finish, im so excited its done


Attachments

  • 20190429_161750.jpg
    564.4 KB · Views: 339
  • 20190429_161520.jpg
    527.7 KB · Views: 284
  • 20190429_161508.jpg
    862.1 KB · Views: 291
  • 20190429_161450.jpg
    603 KB · Views: 287
  • 20190429_161433.jpg
    763.2 KB · Views: 304
  • 20190429_161421.jpg
    853.8 KB · Views: 287

jobo

Grandmaster
Joined
Apr 3, 2017
Messages
9,762
Reaction score
1,514
Location
Manchester UK
Hand made my own hickory karate eku (Okinawan [fighting] oar)
‍♂️

With a tung oil finish, im so excited its done
it's a nice piece of work, but do you have a foreseeable use for a fighting oar?

I supose if theres pirates in the vicinity it may come in useful?


CB Jones

Senior Master
Joined
Feb 20, 2017
Messages
3,938
Reaction score
2,013
Location
Saline
Hand made my own hickory karate eku (Okinawan [fighting] oar)
‍♂️

With a tung oil finish, im so excited its done

Nice work.

We have a lot of friends that compete in weapon forms with ekus....eku....eki....what's the plural form of eku?


Tez3

Sr. Grandmaster
Supporting Member
Joined
Oct 13, 2006
Messages
27,608
Reaction score
4,901
Location
England
Deep in the recesses of my brain I remember I'd heard of 'fighting oars' somewhere, but they are lovely things to be sure!

As for uses, well a weapon is a weapon is a weapon!

D

Deleted member 39746

Guest
Now you can finally be a boatman! :p

I was tempted to try making a quarter staff, but im not exactly sure how/ what the traditional/best method of doing it is. I have heard taking a sapling is the traditional way of making it and you need a draw knife. I think its called that. Kind of a lost art really.

And i imagine Ash is quite expensive to get your hands on especially a sapling.


Danny T

Senior Master
Joined
Sep 5, 2002
Messages
4,258
Reaction score
2,293
Location
New Iberia, Louisiana USA
Nice!

Oh and don't let those who would make fun of your training.
There are some excellent reasons for working with odd type weapons like an oar:
I - improved coordination
Training with an object like the oar helps to improve your coordination in ways that only controlling something that you don't have nerve endings in can. The length changes the effective range and center of gravity as well.

II - weapons of opportunity
It's not just an oar. It's also anything potential its length and weight. You're training with anything cylindrical of roughly the same length. You'll have to make adjustments for weight/length/feel, but you'll be better equipped to fight with odd type of objects than if you haven't.

III - historical preservation
Whether or not this is important to you many choose to practice with historical weapons, a category which many martial arts weapons fall into, because they want to preserve, or in some cases, reconstruct, historical weapons practices. This can be because the weapon belongs to a martial art they've already invested time into. It can also be because of cultural heritage. Or, it may well be something a person simple enjoys doing.


Flying Crane

Sr. Grandmaster
Joined
Sep 21, 2005
Messages
15,230
Reaction score
4,920
Location
San Francisco
@Christopher Adamchek i also intended to ask what your shaping method is.

I do not have a lathe, so I shape things on a belt sander. I’ve found I can control the shape pretty well that way.

I typically buy a hickory board and cut it into square rods of about 1 1/8 inch on a side, by however long the board is. Then I just start shaping them down, turning them on the belt sander. There is a whole lot of hand sanding afterwards, and I finish with linseed oil and teak oil.


Blindside

Grandmaster
Founding Member
Joined
Oct 29, 2001
Messages
5,175
Reaction score
849
Location
Kennewick, WA
@Christopher Adamchek i also intended to ask what your shaping method is.

I do not have a lathe, so I shape things on a belt sander. I’ve found I can control the shape pretty well that way.

Have you considered a Japanese wood rasp like one of these? https://www.amazon.com/gp/product/B004DIHDU0/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

They are incredibly good at taking off material, I have been doing sword handles with it and it really saves me a lot of time.


Flying Crane

Sr. Grandmaster
Joined
Sep 21, 2005
Messages
15,230
Reaction score
4,920
Location
San Francisco
OP
Christopher Adamchek

Christopher Adamchek

Purple Belt
Joined
Oct 1, 2018
Messages
355
Reaction score
167
Location
CT
Nice work.

We have a lot of friends that compete in weapon forms with ekus....eku....eki....what's the plural form of eku?

Thank you
hmmm, i feel like its like moose, so just eku
I have some interest in the forms, non for competing with forms, im excited to actually spar with it in the sand and water :D

OP
Christopher Adamchek

Christopher Adamchek

Purple Belt
Joined
Oct 1, 2018
Messages
355
Reaction score
167
Location
CT
@Christopher Adamchek i also intended to ask what your shaping method is.

I do not have a lathe, so I shape things on a belt sander. I’ve found I can control the shape pretty well that way.

I typically buy a hickory board and cut it into square rods of about 1 1/8 inch on a side, by however long the board is. Then I just start shaping them down, turning them on the belt sander. There is a whole lot of hand sanding afterwards, and I finish with linseed oil and teak oil.

Table and jigsaw to get the rough shape
Planer to strip it closer to the shape
And hours with an orbital sander (40,150,and 220)
Then 7 coats of tung oil buffing with 00 steel wool between each coat

OP
Christopher Adamchek

Christopher Adamchek

Purple Belt
Joined
Oct 1, 2018
Messages
355
Reaction score
167
Location
CT
It’s lovely. What are the dimensions...the ratio of blade to handle?

started with a 1in x 3.5in x 6ft hickory board

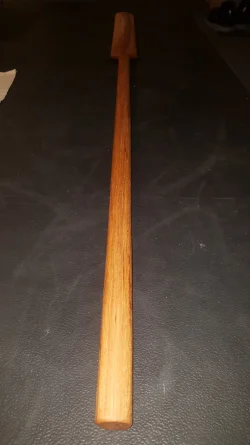

handle is 1in x 1.25in (oval) x 3.5ft
blade is 2.5ft long

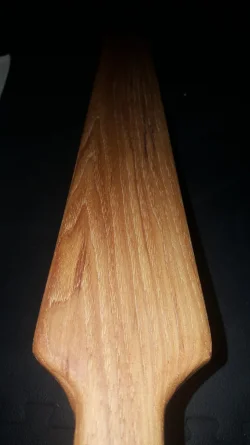

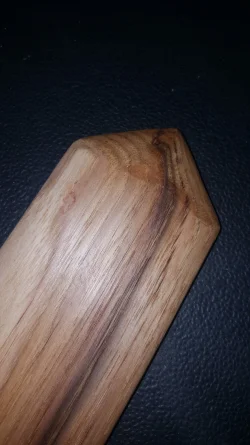

top of the blade is angled down about 15 degrees on either side and concave bevel near the middle
back of the blade is slightly rounded

making a 5ft one next with a 3ft handle and 2ft blade


Gerry Seymour

MT Moderator
Staff member
Supporting Member
Joined
Mar 27, 2012
Messages
29,973
Reaction score
10,532
Location
Hendersonville, NC
Hickory is a good choice for weapon viability.
My understanding is Appalachian hickory is preferable to whatever "standard" hickory is. I've been contemplating special-ordering a couple of boards from a woodworking supplier, to make some staves from. Appalachian hickory staves seem to go for upwards of $100, so I can't see myself ever actually buying one.


Gerry Seymour

MT Moderator
Staff member
Supporting Member
Joined
Mar 27, 2012
Messages
29,973
Reaction score
10,532
Location
Hendersonville, NC
Hand made my own hickory karate eku (Okinawan [fighting] oar)
‍♂️

With a tung oil finish, im so excited its done
That's some beautiful work there, man. I've had an opportunity to watch ecu forms once at the school where I teach. If I were to pick one weapon other than a basic staff to learn forms on, that'd probably be it.


JR 137

Grandmaster
Joined
Apr 26, 2015
Messages
5,162
Reaction score
3,224
Location
In the dojo
That's some beautiful work there, man. I've had an opportunity to watch ecu forms once at the school where I teach. If I were to pick one weapon other than a basic staff to learn forms on, that'd probably be it.
I’ve seen a few traditional Okinawan eku kata. My former sensei was quite good with it. It’s one of those weapons you don’t see often. I’d love to learn it. My current organization doesn’t use it that I know of.

My former teacher went the right way with weapons IMO. He pretty much made it a completely separate entity. His students learn the basics of the bo, a kata or two, and some partner drills. His weapons program has its own ranks, and various weapons at various ranks. Eku is one of the weapons. Not sure how far alone the program that is.
