L7A1 ammo!

Deaf Smith

Master of Arts
Joined
Apr 25, 2008
Messages
1,722
Reaction score
85
Well a friend (maybe we will see) gave me a box of L7A1 9mm ammo. Supposed to be 50,000 PSI subgun ammo. From the internet they say it works fine in Glocks.

I intend to chrono it and I'll let you know, presuming I survive, how fast it goes.

I'll use a Glock 17 and 19 for the test, and a face shield.

Deaf


Carol

Crazy like a...
MT Mentor
Lifetime Supporting Member
MTS Alumni
Joined
Jan 16, 2006
Messages
20,311
Reaction score
541
Location
NH
Good lord thats a hot round to run through a Glock.

OP
Deaf Smith

Deaf Smith

Master of Arts
Joined
Apr 25, 2008
Messages
1,722
Reaction score
85
Good lord thats a hot round to run through a Glock.

Word is it makes 1400 fps from a Glock 19. For a 124 grain slug that's .357 mangum power. Gonna be fun this weekend!

Deaf


Carol

Crazy like a...
MT Mentor
Lifetime Supporting Member
MTS Alumni
Joined
Jan 16, 2006
Messages
20,311
Reaction score
541
Location
NH
MMmmHmmm.

I think I'll just stand over here (20 states away oughtta do it) if that's OK with you. ;)

OP
Deaf Smith

Deaf Smith

Master of Arts
Joined
Apr 25, 2008
Messages
1,722
Reaction score
85
Well the Glock 17 didn't blow up.

It kicked a bit more but the cartridge cases looked fine.

My chrono would not work with florecent lights (indoor range, cloudy day.)

But it was no biggie.

Hope Memoral day I can use the chrono.

Deaf


Grenadier

Administrator
Staff member
Lifetime Supporting Member
Joined
Mar 18, 2005
Messages
10,826
Reaction score
617
Winchester Ranger +P+ 127 grain JHP is supposed to generate 42.5 kpsi, so it's not entirely surprising that you were able to run subgun ammo through your Glock safely. At the same time, I gotta admire your guts. I doubt anyone is going to ask "brass, or paper mache`?" :)


If someone wants that kind of performance, though, it can be safely done, using the right powders. I can actually get around that velocity (1375 fps from my Glock 34) with Vihtavuori 3N38 powder (hard to find), while keeping things at the 35 kpsi SAAMI limit for a 124 grain jacketed bullet.

Once this reloading components crisis passes on by, I'll fire up the ol' Dillon RL550B again. :)

OP
Deaf Smith

Deaf Smith

Master of Arts
Joined
Apr 25, 2008
Messages
1,722
Reaction score
85
Chrono time!!!!

Well just got back from the range.

L7A1 ammo, head stamp 91. Red primer seal. Nato + inside circle mark.

The temp. was at least 87 degrees. Humidity was near 90 percent.

No wind to speak of.

Distance from my chrono was 10 ft.

I first fired 5 rounds of PMC .22 lr from my Ruger .22 as a check. Average of 1175 fps, which is right on the money for my 16 inch bbl. 22. rifle.

I then fired five rounds of L7A1 ammo from my Glock 17 with a Bar-Sto barrel. The barrel has conventional rifling and thus expect about 5 percent less velocity than with the polygon Glock barrel.

The five rounds came out at:

1356 fps
1329 fps
1352 fps
1349 fps
1347 fps.

For an average of 1346.6 fps. Expect 1400 from a Glock (and that is just what I've read by others who chronoed from their Glocks.)

Now NATO 124gr FMJ can be expected to make 1250 at the most from a Glock 17, even with the polygon barrel. So the average of 1346 is at least 100 fps higher than Nato (and that ain't hay.)

I have the five empties. Primers show no pressure signs. The case head stamping is quite clear and the cases are totally and absolutely reloadable.

The cases landed 8 to 9 feet from the gun. It did kick a bit more and at the mouth of each case is a small dent. So the slide velocities are higher for sure.

Now what to do with this ammo? Use it when one needs penetration. The jackets are steel, not copper, and thus better for penetration (but no.. it ain't no armor piercing ammo, ok.)

But its head and shoulders above any FMJ for getting into cars without opening the door.

Deaf


Grenadier

Administrator
Staff member
Lifetime Supporting Member
Joined
Mar 18, 2005
Messages
10,826
Reaction score
617
For an average of 1346.6 fps. Expect 1400 from a Glock (and that is just what I've read by others who chronoed from their Glocks.)


Excellent consistency, if anything. Since you're not seeing any overpressure signs, that's certainly encouraging. At least your Glock isn't going to end up like one of Clark's (another fellow Glocktalker) do. :)

Now what to do with this ammo? Use it when one needs penetration. The jackets are steel, not copper, and thus better for penetration (but no.. it ain't no armor piercing ammo, ok.)


Most likely, it's a really mild steel, so that they won't have to worry about barrel erosion.

If I recall correctly, I still have those steel jacketed Sellier and Bellot rounds in my closet somewhere. These are 115 grain loads that fly out at 1340 fps from my Glock 17, and came in the grey and red boxes, instead of the grey, green, and yellow boxes. Let me see what I can find...


Grenadier

Administrator
Staff member
Lifetime Supporting Member
Joined
Mar 18, 2005
Messages
10,826
Reaction score
617

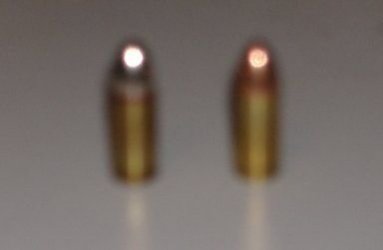

Ah, here we go... Quality isn't too good, but you can see the Sellier and Bellot round's steel jacket (versus the copper jacketed round next to it), along with the red lacquer / sealant.


Attachments

  • $sb.jpg
    5.4 KB · Views: 164
OP
Deaf Smith

Deaf Smith

Master of Arts
Joined
Apr 25, 2008
Messages
1,722
Reaction score
85
Excellent consistency, if anything. Since you're not seeing any overpressure signs, that's certainly encouraging. At least your Glock isn't going to end up like one of Clark's (another fellow Glocktalker) do. :)

What did his gun do? Case blowout where the lack of chamber support is on Glocks? Or crack the barrel?

Thanks,

Deaf


chinto

Senior Master
Joined
Apr 18, 2007
Messages
2,026
Reaction score
38
I would consult a VERY VERY good GUNSMITH before I shot any SMG load 9MM ammo out of ANY pistol!!!

but im a few states away.. I should be safe!


Grenadier

Administrator
Staff member
Lifetime Supporting Member
Joined
Mar 18, 2005
Messages
10,826
Reaction score
617
What did his gun do? Case blowout where the lack of chamber support is on Glocks? Or crack the barrel?

Thanks,

Deaf

Remember the user Clark Magnuson? His job was to essentially pressure test all sorts of guns, and he'd work up some nuclear-level handloads (primarily with Alliant Power Pistol powder). If there was something that could have broken, rest assured, he probably did it.
