L7A1 ammo!

Discussion in 'The Firing Range (Firearms)' started by Deaf Smith, May 19, 2009.

  1. Deaf Smith

    Deaf Smith Master of Arts

    Joined:
    Apr 25, 2008
    Messages:
    1,722
    Likes Received:
    85
    Trophy Points:
    73
    Well a friend (maybe we will see) gave me a box of L7A1 9mm ammo. Supposed to be 50,000 PSI subgun ammo. From the internet they say it works fine in Glocks.

    I intend to chrono it and I'll let you know, presuming I survive, how fast it goes.

    I'll use a Glock 17 and 19 for the test, and a face shield.

    Deaf

  2. searcher

    searcher Senior Master

    Joined:
    Mar 15, 2005
    Messages:
    3,317
    Likes Received:
    56
    Trophy Points:
    108
    Location:
    Kansas
    Better use a remote setup.

  3. Carol

    Carol Crazy like a...

    • Supporting Member
    • MartialTalk Fan
    • MartialTalk Mentor
    • LifeTime Supporting Member
    • Martial Talk Alumni
    Joined:
    Jan 16, 2006
    Messages:
    20,225
    Likes Received:
    470
    Trophy Points:
    193
    Location:
    NH
    Good lord thats a hot round to run through a Glock.

  4. Deaf Smith

    Deaf Smith Master of Arts

    Joined:
    Apr 25, 2008
    Messages:
    1,722
    Likes Received:
    85
    Trophy Points:
    73
    Word is it makes 1400 fps from a Glock 19. For a 124 grain slug that's .357 mangum power. Gonna be fun this weekend!

    Deaf

  5. Carol

    Carol Crazy like a...

    • Supporting Member
    • MartialTalk Fan
    • MartialTalk Mentor
    • LifeTime Supporting Member
    • Martial Talk Alumni
    Joined:
    Jan 16, 2006
    Messages:
    20,225
    Likes Received:
    470
    Trophy Points:
    193
    Location:
    NH
    MMmmHmmm.

    I think I'll just stand over here (20 states away oughtta do it) if that's OK with you. ;)

  6. Deaf Smith

    Deaf Smith Master of Arts

    Joined:
    Apr 25, 2008
    Messages:
    1,722
    Likes Received:
    85
    Trophy Points:
    73
    Well the Glock 17 didn't blow up.

    It kicked a bit more but the cartridge cases looked fine.

    My chrono would not work with florecent lights (indoor range, cloudy day.)

    But it was no biggie.

    Hope Memoral day I can use the chrono.

    Deaf

  7. Grenadier

    Grenadier Yum! Staff Member

    • Administrator
    • Supporting Member
    • Super Moderator
    • LifeTime Supporting Member
    Joined:
    Mar 18, 2005
    Messages:
    9,416
    Likes Received:
    211
    Trophy Points:
    173
    Winchester Ranger +P+ 127 grain JHP is supposed to generate 42.5 kpsi, so it's not entirely surprising that you were able to run subgun ammo through your Glock safely. At the same time, I gotta admire your guts. I doubt anyone is going to ask "brass, or paper mache`?" :)


    If someone wants that kind of performance, though, it can be safely done, using the right powders. I can actually get around that velocity (1375 fps from my Glock 34) with Vihtavuori 3N38 powder (hard to find), while keeping things at the 35 kpsi SAAMI limit for a 124 grain jacketed bullet.

    Once this reloading components crisis passes on by, I'll fire up the ol' Dillon RL550B again. :)

  8. Deaf Smith

    Deaf Smith Master of Arts

    Joined:
    Apr 25, 2008
    Messages:
    1,722
    Likes Received:
    85
    Trophy Points:
    73
  9. Deaf Smith

    Deaf Smith Master of Arts

    Joined:
    Apr 25, 2008
    Messages:
    1,722
    Likes Received:
    85
    Trophy Points:
    73
    Chrono time!!!!

    Well just got back from the range.

    L7A1 ammo, head stamp ’91. Red primer seal. Nato + inside circle mark.

    The temp. was at least 87 degrees. Humidity was near 90 percent.

    No wind to speak of.

    Distance from my chrono was 10 ft.

    I first fired 5 rounds of PMC .22 lr from my Ruger .22 as a check. Average of 1175 fps, which is right on the money for my 16 inch bbl. 22. rifle.

    I then fired five rounds of L7A1 ammo from my Glock 17 with a Bar-Sto barrel. The barrel has conventional rifling and thus expect about 5 percent less velocity than with the polygon Glock barrel.

    The five rounds came out at:

    1356 fps
    1329 fps
    1352 fps
    1349 fps
    1347 fps.

    For an average of 1346.6 fps. Expect 1400 from a Glock (and that is just what I've read by others who chronoed from their Glocks.)

    Now NATO 124gr FMJ can be expected to make 1250 at the most from a Glock 17, even with the polygon barrel. So the average of 1346 is at least 100 fps higher than Nato (and that ain't hay.)

    I have the five empties. Primers show no pressure signs. The case head stamping is quite clear and the cases are totally and absolutely reloadable.

    The cases landed 8 to 9 feet from the gun. It did kick a bit more and at the mouth of each case is a small dent. So the slide velocities are higher for sure.

    Now what to do with this ammo? Use it when one needs penetration. The jackets are steel, not copper, and thus better for penetration (but no.. it ain't no armor piercing ammo, ok.)

    But it’s head and shoulders above any FMJ for getting into cars without opening the door.

    Deaf

  10. Grenadier

    Grenadier Yum! Staff Member

    • Administrator
    • Supporting Member
    • Super Moderator
    • LifeTime Supporting Member
    Joined:
    Mar 18, 2005
    Messages:
    9,416
    Likes Received:
    211
    Trophy Points:
    173


    Excellent consistency, if anything. Since you're not seeing any overpressure signs, that's certainly encouraging. At least your Glock isn't going to end up like one of Clark's (another fellow Glocktalker) do. :)



    Most likely, it's a really mild steel, so that they won't have to worry about barrel erosion.

    If I recall correctly, I still have those steel jacketed Sellier and Bellot rounds in my closet somewhere. These are 115 grain loads that fly out at 1340 fps from my Glock 17, and came in the grey and red boxes, instead of the grey, green, and yellow boxes. Let me see what I can find...

  11. Grenadier

    Grenadier Yum! Staff Member

    • Administrator
    • Supporting Member
    • Super Moderator
    • LifeTime Supporting Member
    Joined:
    Mar 18, 2005
    Messages:
    9,416
    Likes Received:
    211
    Trophy Points:
    173

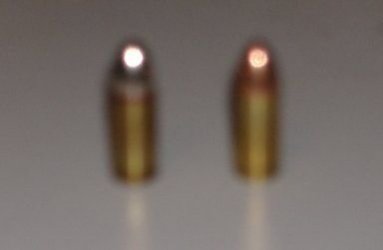

    Ah, here we go... Quality isn't too good, but you can see the Sellier and Bellot round's steel jacket (versus the copper jacketed round next to it), along with the red lacquer / sealant.


    Attached Files:

    • $sb.jpg
      File size:
      5.6 KB
      Views:
      15
  12. Deaf Smith

    Deaf Smith Master of Arts

    Joined:
    Apr 25, 2008
    Messages:
    1,722
    Likes Received:
    85
    Trophy Points:
    73
    What did his gun do? Case blowout where the lack of chamber support is on Glocks? Or crack the barrel?

    Thanks,

    Deaf

  13. chinto

    chinto Senior Master

    Joined:
    Apr 18, 2007
    Messages:
    2,017
    Likes Received:
    34
    Trophy Points:
    108
    I would consult a VERY VERY good GUNSMITH before I shot any SMG load 9MM ammo out of ANY pistol!!!

    but im a few states away.. I should be safe!

  14. Grenadier

    Grenadier Yum! Staff Member

    • Administrator
    • Supporting Member
    • Super Moderator
    • LifeTime Supporting Member
    Joined:
    Mar 18, 2005
    Messages:
    9,416
    Likes Received:
    211
    Trophy Points:
    173
    Remember the user Clark Magnuson? His job was to essentially pressure test all sorts of guns, and he'd work up some nuclear-level handloads (primarily with Alliant Power Pistol powder). If there was something that could have broken, rest assured, he probably did it.
